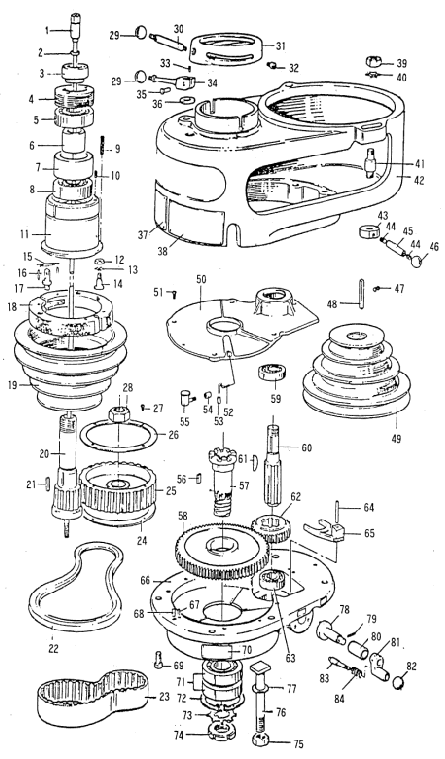

GROMAX Milling Head Spare Parts (A) for MH-V200:
Model Descriptions Price
A001 Drawbar for NT30 (1/2-12UNC) $31.25
A001-1 Drawbar for NT30(M12-P1.75) $31.25
A001-2 Drawbar for R8(7/16"-20UNC) $31.25
A002 Washer $2.50
A003 Upper Bearing Locknut $15.00
A004 Bearing Sleeve Locknut $20.00
A005 Bearing #6207zz $38.75
A006 Upper Bearing Spacer (small) $11.88
A007 Upper Bearing Spacer (large) $15.63
A008 Bearing #6207zz $11.88
A009 Compression Spring $4.69
A010 M3x12 Socket Cap Screw $3.13
A011 Bearing Sleeve $57.50
A014 Brake Ring Screw $7.50
A015 External Spring $5.00
A016 Washer Call
A017 Brake Lock Stud $12.50
A018 Brake Block $35.00
A019 Spindle Pulley $73.75
A020 Spindle Pulley Hub $85.00
A021 Key 5x5x20 Call
A022 "V" Belt A-33 $14.38
A023 Timing Belt 225L100 $22.50
A024 Timing Belt Pulley Flange Call
A025 Timing Belt Pulley $65.00
A026 Timing Belt Pulley Flange Call
A027 Flat Head Screw M3x6 Call
A028 Nut $7.50
A029 Black Plastic Ball 3/8" Dia $4.38
A030 Spindle Clutch Lever $7.00
A031 Cam Ring $48.75
A032 Spindle Clutch Cam Ring Pin $4.38
A033 Long Socket Set Screw $3.75
A034 Brake Lock Handle $11.25
A035 Brake Lock Pin $2.50
A036 Brake Lock Washer Call
A037 Spindle Speed Operating Instruction Plate Call
A039 Hex Jam Nut Call
A040 Lock Washer Call
A041 Motor Mounting Studs Call
A042 Belt Housing Call
A043 Motor Lock Nut $4.38
Model Descriptions

Price
A044 Motor Locknut Washer Call
A045 Motor Locknut Handle $4.38
A046 Black Plastic Ball 1/4" Dia $2.50
A048 Key 7x7x25 Call
A049 Motor Pulley $61.25
A050 Gear Housing Cover $43.75
A051 M5x10 Flat Head Screw Call
A055 Oil Cup 1/8" Call
A056 Bull Gear Key 8x8x14 Call
A057 Spindle-Gear Hub $73.75
A058 Spindle Gear $122.50
A059 Bearing #6203zz $35.00
A060 Counter Shaft $30.00
A061 Key 5x5x15 Call
A062 Counter Shaft Gear $75.00
A063 Bearing #6203zz Call
A064 Dowel Pin $3.75
A065 Back Gear Shifter Fork $28.13
A066 Gear Housing Call
A067 Dowel Pin Call
A068 Spring Pin 4x25 Call
A069 M6x16 Hex-Socket Head Cap Screw Call
A070 Disengage Feed Instruction Plate Call
A071 Ball Bearing #6208zz $38.75
A072 Inner Retaining Rings (R-80) $5.00
A073 Washer AW08 Call
A074 Locknut Call
A075 7/16"-14 NC Nut Call
A076 Clamping T-Bolt Call
A077 Washer Call
A078 Back Gear Shift Crank $9.38
A079 Spring Pin f 3x20 $1.25
A080 Bronze Sleeve $8.75
A081 Shift Crank $12.50
A082 Black Plastic Ball $2.50
A083 Gear Shift Plunger $3.75
A084 Compression Spring Call
A085 Motor Call
A086 Switch with Electric Wire $31.25
A091 Bracket for Swtich Call
A092 Side Belt Housing Cover $24.38
