CNC Series Machine Features:

• These machines allow a new program to be created while another program is being executed.

• From straight line, circular arc, helix, incremental, absolute and 3 axes coordinates can be easily interchanged.

• The most unique operating modes allow you to get the fastest cutting speed, least electrode wear and finest surface.

• Many friendly operation functions - systematically discharge examples, auto discharge process, cutting graphics preview.

• Immediately check executable program and easily preview 2D, 3D graphics.

• C axis and ATC (auto tool changes) can be chosen optionally.

Click for more details.

Heidenhain TNC416 Controller:

• CNC DEM includes 4 complete CNC axes with Heidenhain TNC416 Controller.

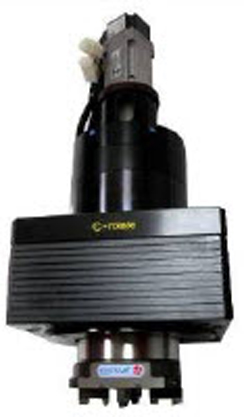

1) 3R C Axis

3RCAXIS
Call

C axes are primarily intended for indexing and for movements synchronized with the machine, such as cutting threads and spirals, but they can also be used for machining with a rotary electrode.

2) 3R Automatic
Tool Changer

Call

ATC (Auto Tool Changer):
3R Marco Combi Linear Changer with 6 positions for Macro Junior holders. Can also be loaded with Marco holders in every second position of the magazine or a mixed load of Marco and Macro Junior Holders.

Changer movements are produced pneumatically, whilst rotary and vertical motions have a hydraulic damping function to ensure exact travels. Every movement of the changing arm is monitored by sensors in the form of end-position switches or magnetic contacts.

3R Magazine Fork Macro for linear changers

3) 4th Axis YUASA
Programmable Rotary Table

Click for the details.
