Grinder/Drill Sharpener

Grinding Wheel

Grinding Accessories

Suburban Tool



GROMAX>Grinder>Surface Grinder


| surface grinder | cylindrical grinder | rotary type surface grinder |
| centerless grinder | cutter & tool grinder/drill sharpener | pin cut-off machine |

Surface Grinder

Manual
SG-200/SG-250 GROMAX 6"x16"/10"x20" Surface Grinder [Optional Accessories]
SG-616M GROMAX Manual 6"x16" Surface Grinder [Optional Accessories]
SG-618C/818C Birmingham Economic 6"x18"/8"x18" Manual Surface Grinder
KGS-618/KGS-618C/SGS-816 KENT USA Manual Surface Grinder
Automatic
SG-250AHD GROMAX 3-Axis Automatic 10"x20" Surface Grinder [Optional Accessories]
SG1020AHD GROMAX 3-Axis Automatic 10"x20" Surface Grinder [Optional Accessories]
SG-63AHD/84AHD GROMAX 3-Axis Automatic 12"x24"/16"x32" Surface Grinder [Optional Accessories]
SG-410AHD/510AHD GROMAX 3-Axis Automatic 16"x40"/20"x40" Surface Grinder [Optional Accessories]
SG-63MSI/84MSI/510MSI GROMAX Single-Axis Programmable 12"x24"/16"x32"/20"x40" Surface Grinder [Optional Accessories]

Accessories

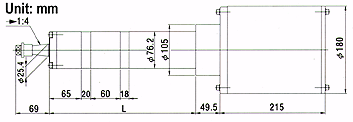

PB Series Cartridge Spindle for Surface Grinder
PF Series Cartridge Spindle for Surface/Cylindrical Grinder
KE Series Cartridge Spindle for Surface/Cylindrical Grinder
GTM Series Paper Filter & Magnetic Separator
GT-MCA20 Magnetic Separator & Coolant System
GTM6 Dust-Collector Coolant System

Features
Sturdy double walled column with symmetrical design provides utmost rigidity, minimizes thermal distortion and ensures accuracy. The X- and Z- axes way surfaces are coated with Turcite-B, match shaped to the cast iron supports. This combination has a low coefficient of friction and good anti "stick-slip" properties. The main components of the machine are stabilized Meehanite cast iron to achieve good shock absorption. Heavy walls, heavy cross rib and superior design make this an extremely rigid machine.



TOP
GROMAX Precision Surface Grinder

Features:
  • Cartridge type spindle
  • Precision class-7 paired & pre-loaded bearing
  • Ball bearing table/ cable drive
  • Double-V Turcite cross ways/ D-2 hardened & ground table ways
  • Front mounted down feed handle for precision work
  • Cast iron base


Click for larger view.



Made in Taiwan



Model Price
SG-200 $5,450.00
SG-2045 $8,300.00
Specifications:
Model SG200 SG2045
Work Table Surface Area (XxY) 161/8" x 61/4" 10" x 20"
Max. Table Travel (XxY) 1615/16" x 77/8" 103/4" x 22"
Max. Grinding Surface (XxY) 161/8" x 71/4" 10" x 20"
Max. Distance Between Center of Spindle to Table 181/8" 191/2"
Max. Table Load (Includes Magnetic Chucks)  220 Lbs. approx. 500 Lbs approx.
Cross Feed on Hand (1 rev.) 0.2"  0.2"
Wheel (1 gra.) 0.001" 0.001"
Vertical Down Feed on (1 rev.) 0.050"  0.050"
Hand Wheel (1 grad.) 0.0002" 0.0002"
Wheel Speed (60 Hz) 3500 rpm  3500 rpm
Wheel Dimensions (O.D. x T x I.D.)  7" x 1/2" x 11/4" 7" x 1/2" x 11/4"
Spindle Motor  2HP 2 HP
Packing Dimensions 58.5" x 45" x 73" 72" x 61" x 80"
Price $5,450.00 $8,300.00

Standard Accessories:
Wheel balancing stand
Wheel balancing arbor
Wheel and flange
Tool box and tools
Flange extractor
Diamond dresser
Working lamp

TOP
Optional Accessories (SG-200/SG250):
Parallel dresser  $305.00
6"x14" magnetic chuck $570.00
Dust-collector coolant system $895.00
Coolant system $350.00
Wheel flange $65.00


TOP
GROMAX Manual Precision Surface Grinder

Features:
  • Cross-feed locking mechanism hand wheel shaft 31.5" from floor
  • Cable drive ball bearing table, double-V
  • D-2 hardened & ground ball bearing table ways
  • TURCITE cross ways, cast iron base, 1 shot lubrication.
  • Large down feed dial as one calibration cross feed lock device could make plunge grinding conveniently

SG-616M
6"x16"

Click for larger view.
$7,950.00

Specifications:
Table Size 161/8"x69/32"
Parallelism & Flatness Accuracy 0.0002"
Max. Travel (Longitudinal x Cross) 17" x 8"
Max. Distance Spindle Center to Table  18"
Table Load including magnetic chuck 220 lbs
Grinding Wheel (OD x T x ID) 8" x 1/2" x 11/4"
Grinding Wheel Speed 3480 rpm
Spindle Motor  2 HP
Machine Height 65"
Machine Net Weight  1380 lbs

TOP
Optional Accessories (SG-616M):
"Walker" 6"x14" Ceramax Fine Division Permanent Chuck  $1,350.00
"Walker" 6"x14" LBP Fine Division Elec. Chuck & Control (MSB1)  $1,790.00
KMT 6"x14" Permanent Chuck  $515.00
Dust Collector & Coolant System $895.00
Magnetic Separator & Coolant System  $990.00
Parallel Dresser (E300)  $395.00
Extra Wheel Flange  $65.00


TOP
Birmingham Economic Manual Surface Grinder

Features:
  • 2HP wheel spindle motor
  • Fine graduation on travels
  • Precision cartridge wheel spindle
  • Precision and smooth roller way table
  • Auto lubrication on leadscrews and ways
  • Fine grain high tensile casting construction
 Standard Accessories:
  • Grinding wheel
  • Grinding wheel flange
  • Wheel balance arbor
  • Diamond wheel dresser
  • Working light system
  • Tool Box
  • Hoisting Set
  • Leveling pads
  • Coolant system
  • Standard permanent magnet chuck

Optional Accessories:

  • Dust collector system
  • Coolant dust system
  • Fineline Magnet chuck
  • Electrical magnet chuck with demagnet system
 Special package FREE
with grinder purchase:
  • Permanent chuck
  • Coolant unit

Made in China
Click for larger view.
SG-618C (manual/6"x18") $4,660.00
SG-818C (manual/8"x18") $5,950.00

Specifications:
Model SG-618C SG-818C
Table size 6"x18" 8"x18"
Max. grinding length 18-1/2" 19-3/4"
Max. grinding width 6-1/2" 8-1/4"
Max. distance (center to table) 15-3/4" 19-3/4"
Max. longitudinal travel 19" 21-5/8"
Max. cross travel 7" 9"
Longitudinal travel (per rev.) 4-1/8" 3-15/16"
Cross travel (per rev.) .2" .2"
Cross travel (per grad.) .0008" .0008"
Vertical travel (per rev.) .05" .05"
Vertical travel (per grad.) .00025" .00025"
Peripheral speed of wheel 110 FT/S 110 FT/S
Spindle speed 3600rpm 3600rpm
Grinding wheel size 8"x1/2"x1-1/4" 8"x1-2"x1-1/4"
Spindle motor 2HP 2HP
Dust collector motor 1/2HP 1/2HP
Coolant pump .05HP .05HP
Lubricating pump .02HP .02HP
Net weight 1600 Lbs. 2350 Lbs.
Price $4,660.00 $5.950.00


TOP
KENT USA Manul Surface Grinder

Standard Accessories:
  • Grinding wheel
  • Wheel flange
  • Wheel balancing arbor
  • Diamond table dresser base and tip
  • Leveling bolts and pads
  • Toolbox with tools

Optional Accessories:

  • Kanetsu 6x18 fine pole electric chuck & control $1,790.00
  • OS Walker 6x18 ceramax permanent chuck $1,435.00
  • Dust-suction coolant system $900.00
  • Overhead parallel dresser $400.00
  • Extra wheel flange $75.00
  • DRO system (Mitutoyo 2-axis, UDR-220, 8x18) $1,850.00
  • DRO installation charge $350.00
 Special package FREE with grinder purchase:
  • 6"x18" Permanent chuck
  • Coolant unit

KGS-618

Click for larger view.

SGS-816

Click for larger view.

KGS-618 (made in Taiwan) $6,295.00
KGS-618C (made in China) $5,595.00
SGS-816 (made in Taiwan) $6,995.00
Specifications:
Model KGS-618 SGS-816
Table size 6"x18" 6-1/4"X16"
Max. travel (longitudinal x cross) 7-1/4"x19-1/2" 8-1/4"x17-1/4"
Max. distance spindle to table 21-1/2" 18"
Table load in addition to mag. chuck 395 Lbs. 440 Lbs.
Grinding wheel (ODxTxID) 8"x1"x1-1/4" 8"x1/2"x1-1/4"
T-slot (number x width 1x9/16" 1x3/8"
Table ways Steel ball sideways Steel ball sideways
Vertical downfeed on handwheel (1 gra.) 0.0002" 0.0002"
Vertical downfeed on handwheel (1 rev.) 0.04" 0.05"
Rapid power elevation motor No Yes
Crossfeed on handwheel (1 gra.) 0.0005" 0.001"
Crossfeed on handwheel (1 rev.) 0.1" 0.2"
Spindle speed (60Hz) 3480rpm 3480rpm
Spindle motor 2HP, 2P 2HP, 2P
Coolant motor (optional) 1/8HP, 2P 1/8HP, 2P
Dust collector motor (optional) 1/2HP, 2P 1/2HP, 2P
Net weight 2400 Lbs. 1430 Lbs.
Gross weight 2600 Lbs. 1600 Lbs.
Packing dimensions 55"x44"x80" 56"x51"x74"
Price (made in Taiwan)
(made in China)
KSG-618 $6,295.00
KSG-618C $5,595.00		 SGS-816 $6,995.00
(NA)


TOP
GROMAX 3-Axis Automatic Precision Surface Grinder

Features:
  • Hydraulic Table
  • D-2 Hardened & ground ball bearing table ways
  • Double-V Turcite Cross Ways
  • Cast Iron Base
  • Solid state controlled crossfeed
  • Vernier down-feed graduation dial
  • Class 7 paired & pre-loaded bearing spindle

10"x20"

Click for larger view.
SG-250AHD (auto) $14,000.00
SG-250AH (hydraulic) $11,880.00
SG-250M (manual) $8,850.00

Specifications:
Table Size 20"x10"
Max. Travel (Longitudinal x Cross) 211/2"x101/4"
Max. Distance Spindle Center to Table  19"
Table Load including magnetic chuck 220 lbs
Longitudinal Table Speed 16~75 ft/min
Automatic Downfeed Increment 0.0001"~0.001"
Grinding Wheel (OD x T x ID) 8" x 1/2" x 11/4"
Grinding Wheel Speed 3480 rpm
Spindle Motor  2 HP
Hydraulic Motor 1 HP
Machine Height 70"
Machine Net Weight  2750 lbs

TOP
Optional Accessories (SG-250AHD):
"Walker" 8"x18" Ceramax Fine Division Permanent Chuck  $2,120.00
"Walker" 8"x18" LBP Fine Division Elec. Chuck & Control (MSB1)  $2,450.00
KMT 8"x18" Permanent Chuck (KMT-2045A) $855.00
Dust Collector & Coolant System $895.00
Magnetic Separator & Coolant System  $990.00
Parallel Dresser (E300)  $395.00
Extra Wheel Flange  $65.00


TOP
GROMAX 3-Axis Automatic Precision Surface Grinder
Features:
  • 20" x 10" table size
  • Table and saddle ways lined with TURCITE B
  • Cartridge type spindle equipped with angular contact ball bearings
  • Hydraulic table movement, electronic cross feed, auto incremental down feed
 Special package FREE
with grinder purchase:

SG1020AHD
10"x20"

Click for larger view.
$16,500.00
Specifications:
Table Size 20"x10"
Max. Travel (Longitudinal x Cross) 211/2"x107/8"
Max. Distance Spindle Center to Table  191/4"
Table Load including magnetic chuck 550 lbs
Longitudinal Table Speed 17~82 ft/min
Automatic Downfeed Increment 0.0001"~0.001"
Grinding Wheel (OD x T x ID) 8" x 1/2" x 11/4"
Grinding Wheel Speed 3480 rpm
Spindle Motor  3 HP
Hydraulic Motor 2 HP
Machine Height 70"
Machine Net Weight  3080 lbs

TOP
Optional Accessories (SG1020AHD):
"Walker" 10"x20" Ceramax Fine Division Permanent Chuck  $3,475.00
"Walker" 10"x20" LBP Fine Division Elec. Chuck & Control (MSB1)  $4,140.00
KMT 10"x20" Permanent Magnetic Chuck $1,225.00
Extra Wheel Flange  $65.00


TOP
GROMAX 3-Axis Automatic Precision Surface Grinder

Features:
  • V & flat Turcite table ways, double V Turcite cross ways
  • Auto lubrication, hydraulic table movement, solid-state control cross feed, auto incremental downfeed
  • (For 84AHD model only)
    Equipped with auto cycle control with spark-out time and auto stop
 Special package FREE
with grinder purchase:


Click for larger view.
SG-63AHD (auto/12"x24")
$20,500.00
SG-63AH (hydraulic/12"x24")
$18,700.00
SG-84AHD (auto/16"x32")
$28,500.00

Specifications:
Model SG-63AHD SG-84AHD
Table Size 259/16"x1113/16" 311/2"x153/4"
Max. Travel (Longitudinal x Cross) 2715/16"x133/8" 365/8"x173/4"
Max. Distance Spindle Center to Table  215/8" 235/8"
Table Load including magnetic chuck 924 lbs 1540 lbs
Longitudinal Table Speed 17~82 ft/min 17~82 ft/min
Automatic Downfeed Increment (in 5 steps) 0.00025"~0.00125" 0.00025"~0.00125"
Grinding Wheel (OD x T x ID) 14" x 11/4" x 5" 14" x 11/2" x 5"
Grinding Wheel Speed 1740 rpm 1740 rpm
Spindle Motor  5 HP 5 HP
Hydraulic Motor 2 HP 3 HP
Machine Height 733/16" 74"
Machine Net Weight  3850 lbs 6160 lbs
Price $20,500.00
 $28,500.00

TOP
Optional Accessories (SG-63AHD/SG-84AHD):
"Walker" 12"x14" LBP Fine Division Chuck & MSB1 Control $4,480.00 (63AHD)
"Walker" 16"x32" LBP Fine Division Elec. Chuck & Control (MSB3)  $9,915.00 (84AHD)
"Walker" 16"x32" Interloc Low Profile Chuck & Control (MSB5) $7,360.00 (84AHD)
Spindle Motor Upgrade to 7.5 HP (American made) $250.00 (84AHD)
Paper Filter & Magnetic Separator (GTM20) $1,850.00 (63/84AHD)
Extra Wheel Flange  $195.00 (63/84AHD)


TOP
GROMAX 3-Axis Automatic Precision Surface Grinder

Features:
  • Table proximity switches Free with grinder purchase
  • 16"x40" electro-magnetic chuck with console built-in variable power chuck control
  • PLC control cross feed
  • Auto incremental down feed
  • Column travelling cross feed
  • Auto lubrication
  • W/ V & flat Turcite ways
  • Console setting cross feed travel
  • Magnetic separator & coolant system
  • Parallel dresser
  • Rear splash guard


Click for larger view.
SG-410AHD (16"x40")
$34,900.00
SG-510AHD (20"x40")
$41,500.00

Specifications:
Max. Travel (Longitudinal x Cross) 441/2"x175/8"
Max. Distance Spindle Center to Table  23"
Automatic Downfeed Increment (in 6 steps) 0.0002"~0.0016"
Grinding Wheel (OD x T x ID) 14" x 11/2" x 5"
Grinding Wheel Speed 1740 rpm
Spindle Motor  5 HP
Hydraulic Motor 3 HP
Machine Height 941/2"
Machine Net Weight
